Chemical Storage Cabinets

Corrosion Resistant Chemical Storage Cabinets

Metal-free, corrosion-proof chemical storage cabinets designed for oils, corrosives, glassware & solvent storage. Our lab furniture is available in bespoke or standard sizes with customisable safety signage, doors and shelving.
Chemical Storage Cabinets

Polypropylene Chemical Storage Cabinets

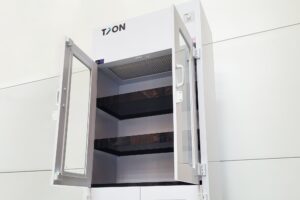

We manufacture our secure storage cabinets using virgin medical-grade welded polypropylene (V0 flame retardant PPS is also available) which eliminates the harmful effects of corrosion & UV degradation. Every product features metal-free hinges with polypropylene screws and 6mm tempered glass panels to prevent unauthorised access and keep your materials safe. Our leak-proof ducted & ductless solutions isolate hazardous substances, preventing inhalation and spillages throughout your facility. Our chemical storage units represent the next generation of lab furniture.

Product Benefits

Full Polypropylene Build

Full Polypropylene Build

100% corrosion-resistant construction extends storage durability while simplifying cleaning procedures.
Delivery & Installation

Delivery & Installation

Full-stack project development encompasses the complete product lifecycle. From delivery to installation.
DW154 Certified Ductwork

DW154 Certified Ductwork

Complies with DW154 standards, guaranteeing optimal extraction containment and efficiency on ducted storage models.
Customisable Dimensions

Customisable Dimensions

Flexible manufacturing process enables cabinet modifications at no additional cost, no matter the height, width or depth.
Customise Your Own Chemical Storage Cabinets
Our solution designers prioritise your needs first. No matter the specification, TION can build it. With customisable dimensions, doors, shelving compartments and accessories, no design is too complex. We stand by our motto of "Customise, Don't Generalise".
Customise Your Own Chemical Storage Cabinets

Your Choice Of Filtered & Non-Filtered Chemical Storage Units

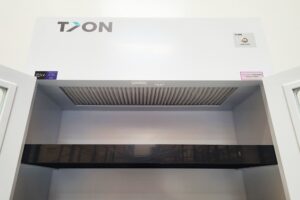

We offer three chemical cupboard models: Filtered, non-filtered and ducted. The filtered units contain an independent fume filtration system with carbon or HEPA filters operating at a typical efficiency of 99.97%. The non-filtered units function as standalone dead air boxes, and the ducted models utilise an extract system connected to a roof-mounted exhaust stack. The type of cabinet you choose depends on the materials stored. Contact our support team for free application advice.

Product Features

Chemical-Storage-Cabinet350
Simplified Cleaning Process

Simplified Cleaning Process

Ultra-low surface tensions simplify the cleaning process with high stain resistance throughout the cabinet's interior & exterior.
100% Corrosion Resistance

100% Corrosion Resistance

Polypropylene construction eliminates corrosion, increasing your product's longevity.
Optional Suction Fan

Optional Suction Fan

The extraction fan reduces vapour build-up inside the unit.
Built-In Air Vents

Built-In Air Vents

Maintains consistent airflow inside your cabinet and reduces the likelihood of residue exposure reinforcing health & safety.
Door Locking Mechanism

Door Locking Mechanism

Prevent unauthorised storage access with individual door locks on each shelving unit.
Integrated Spillage Containment

Integrated Spillage Containment

Our chemical cabinets can be fitted with sumps to capture unwanted chemical wastage.

Product Specification

Models
Documents
FAQ's
Chemical Storage Cabinets: Non-Filtered
Model CS900-PP CS1200-PPCS1600-PP
Product DescriptionLaboratory storage cabinet without duct or filters.Laboratory storage cabinet without duct or filters.Laboratory storage cabinet without duct or filters.
External Size WxDxH (mm)900 x 450 x 2100 mm
35.43 x 26.97 x 82.7”
1200 x 450 x2100 mm
47.2 x 26.97 x 82.7”
1600 x 450 x 2100 mm
63 x 17.71 x 82.7”
Cabinet Material Medical-grade welded polypropylene with 6mm tempered glass sash Medical-grade welded polypropylene with 6mm tempered glass sash Medical-grade welded polypropylene with 6mm tempered glass sash
Power Supply110/220V 50/60 Hz110/220V 50/60 Hz115 / 230V 50/60 Hz, Single phase
FilterNo FilterNo FilterNo Filter
Chemical Storage Cabinets: Carbon / HEPA Filtered
ModelCS900-PPFCS1200-PPFCS1600-PPF
Product DescriptionLaboratory storage cabinet with integrated carbon/HEPA filters and energy-efficient fanLaboratory storage cabinet with integrated carbon/HEPA filters and energy-efficient fanLaboratory storage cabinet with integrated carbon/HEPA filters and energy-efficient fan
External Size WxDxH (mm)900 x 450 x 2100 mm
35.43 x 17.71 x 82.7”
1200 x 450 x 2100 mm
47.2 x 17.71 x 82.7”
1600 x 450 x 2100 mm
63 x 17.71 x 82.7”
Cabinet MaterialMedical-grade welded polypropylene with 6mm tempered glassMedical-grade welded polypropylene with 6mm tempered glassMedical-grade welded polypropylene with 6mm tempered glass
Power Supply115 / 230V 50/60 Hz, Single phase115 / 230V 50/60 Hz, Single phase115 / 230V 50/60 Hz, Single phase
FilterCarbon or HEPA FilterCarbon or HEPA FilterCarbon or HEPA Filter
Chemical Storage Cabinets: Ducted
ModelCS900-PPDCS1200-PPDCS1600-PPD
Product DescriptionLaboratory storage cabinet with top-mounted duct connection.Laboratory storage cabinet with top-mounted duct connection.Laboratory storage cabinet with top-mounted duct connection.
External Size WxDxH (mm)900 x 450 x 2100 mm
35.43 x 26.97 x 82.7”
1200 x 450 x2100 mm
47.2 x 26.97 x 82.7”
1600 x 450 x 2100 mm
63 x 17.71 x 82.7”
Cabinet MaterialMedical-grade welded polypropylene with 6mm tempered glass sashMedical-grade welded polypropylene with 6mm tempered glass sashMedical-grade welded polypropylene with 6mm tempered glass sash
Power Supply110/220V 50/60 Hz110/220V 50/60 Hz115 / 230V 50/60 Hz, Single phase
FilterDucted, no filterDucted, no filterDucted, no filter
Chemical Storage Cabinet Spec Sheet
A chemical storage cabinet or COSHH cabinet is a free-standing enclosure designed to contain oils, corrosives, solvents & glassware. They minimise spillages, vapour and fire hazards through built-in safety mechanisms, including ventilation and storage locks.
A chemical storage cabinet can function in three ways: Non-filtered cabinets act as standalone vented units with no form of extraction. Filtered cabinets use HEPA or carbon-based filters to recirculate air back into the lab. Ducted cabinets use PVC ductwork connected to an external ventilation stack that exhausts air directly into the atmosphere. The type of cabinet you choose depends on the materials being stored and the processes inside your facility. Typically filtered and ducted solutions benefit health & safety thanks to their fume extraction capabilities.
Technically, yes. At TION, we manufacture our cabinets using virgin medical-grade welded polypropylene. It's a non-corrosive material that's naturally stain resistant and simple to clean. Even the most acidic substances like hydrofluoric acid can be stored safely and securely.
It depends on the model of the chemical cupboard. Non-filtered & filtered units can be installed in a matter of minutes. However, ducted chemical cupboards require significant planning, design and installation work to achieve the desired result, ranging from days to weeks.
Chemical storage cabinets typically cost between £3000 to £6000, depending on the complexity and size of the unit. Dead air cupboards will cost significantly less than filtered and ducted units. Unlike traditional mild steel chemical cabinets that rust and corrode easily, we manufacture our products using corrosion-resistant medical-grade welded polypropylene. This material extends the average lifespan of a chemical cabinet by up to 10 years.
Your Preferred Chemical Cupboard Provider
Our skilled solution designers will manage your storage cabinet build from concept to completion. With in-house manufacturing facilities, dedicated project managers, and live build updates, we guarantee a seamless installation process. Rest assured, TION's products exceed modern industry standards with a distinct level of professionalism rarely seen amongst our peers. Contact our team today for a no-obligation free quote.
